2187.36 €
| Model No. | DS205A |
| Type | Swing Turnstile Gate |
| Brand | Daosafe |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 168 * 1050mm |
| Net Weight | 25kg/pcs |
| Passage Width | ≤900mm |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C – 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| IP Level | IP54 |
| Working Environment | Indoor / Outdoor (shelter) |
| Flow Rate | 40 people per minute |
| Infrared Sensor | Optional |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
Laost otsas

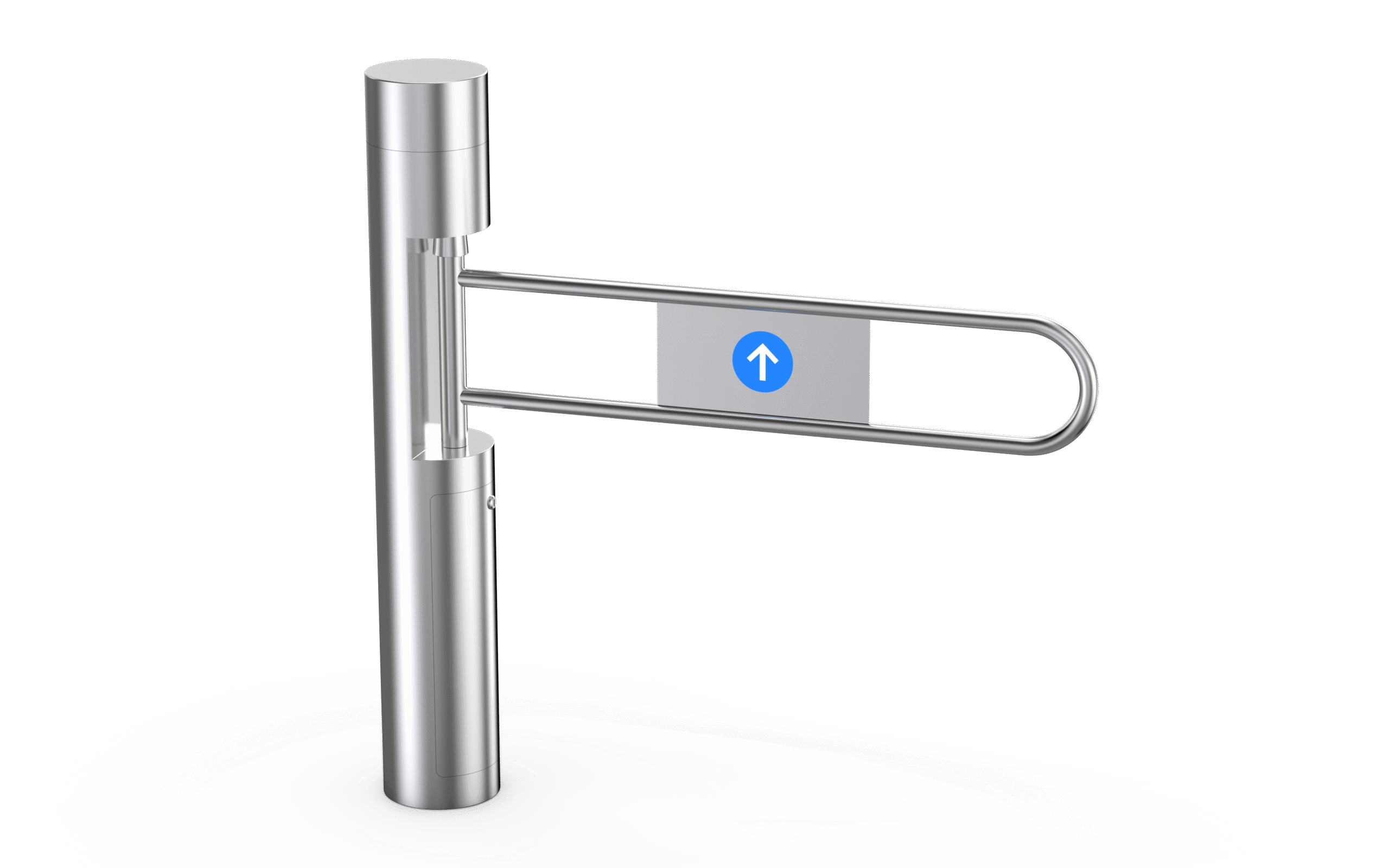

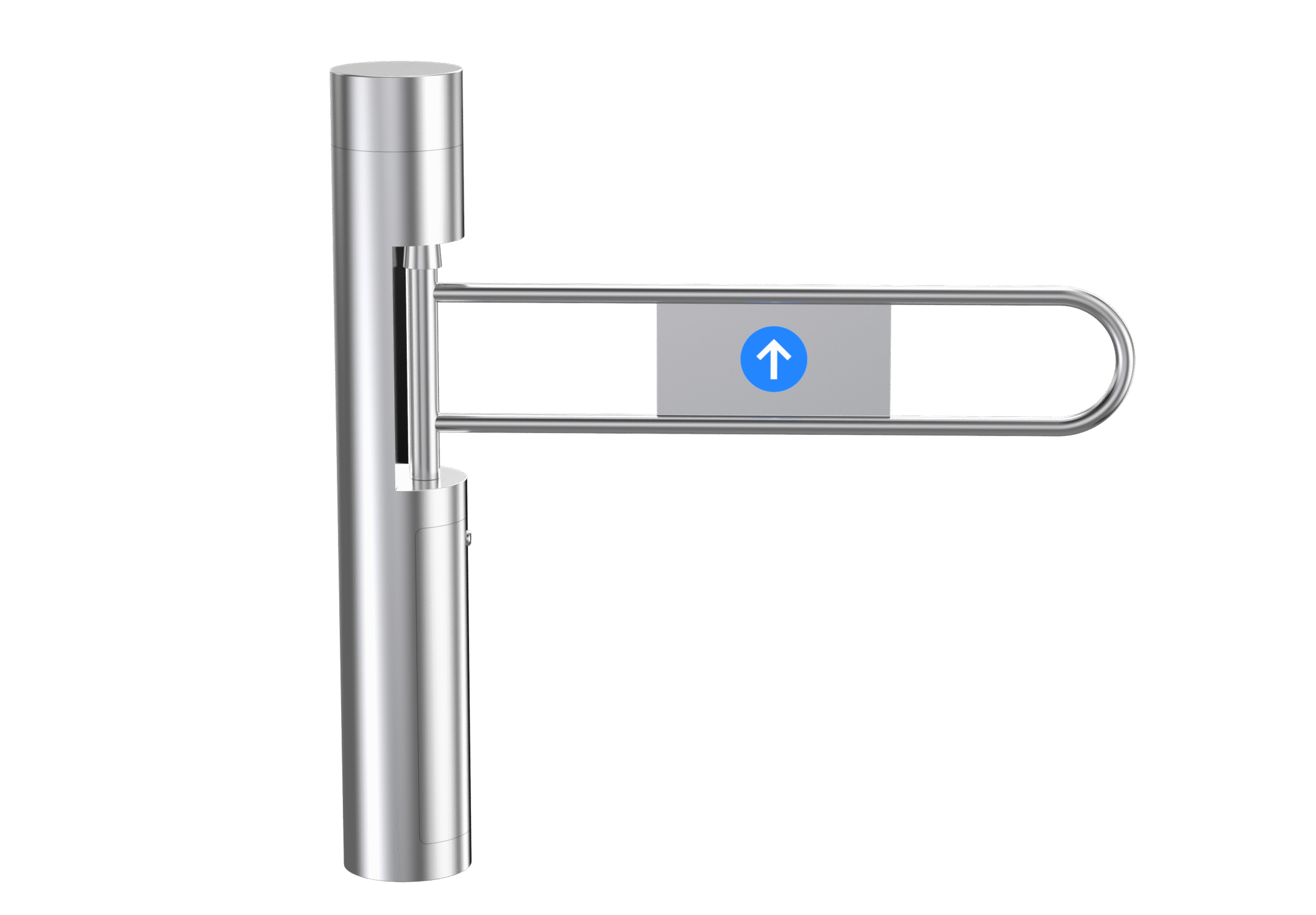

Üks DS205A tiibvärav toetab 900 mm laiust tiiba, mis on mõeldud laiaks läbipääsuks, ratastoolidele ning suure pagasiga jalakäijatele.
Korpuse laius on vaid 168 mm, mistõttu sobib see ideaalselt paigaldamiseks kitsastesse kohtadesse, nagu hooned, ühiselamud, supermarketid, kaubanduskeskused, kauplused jne.
Värava korpus on tugev, jäik, roostevaba, veekindel ja vastupidav.
| Kaal | 25 kg |
|---|---|
| Mõõtmed | 16.8 × 16.8 × 105 cm |
