KOLMHARK TURNIKEED
3410.00 €
| Model No. | DSQ-50S |
| Type | Quantum Tripod Turnstile |
| Brand | Daosafe |
| Certifications | Compliance CE, ROHS, FCC |
| Framework Material | Steel, White and black stoving varnish, Tempered glass |
| Arm Material | 304 stainless steel |
| Dimension | 470 * 400 * 1000mm |
| Net Weight | 60kg/pcs |
| Passage Width | 550mm + 550mm |
| Passing Direction | Single directional/Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -20 ~ 75℃ |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor/Outdoor |
| Flow Rate | 35+35 people per minute |
| LED Indicators | Two LED indicators on top: green → entry, red × no entry |
| Communication | Dry contact, Relay signal, RS485 |
| Emergency | Arms will drop down automatically |
| Flexibility | Integrate with any access control |
Laost otsas

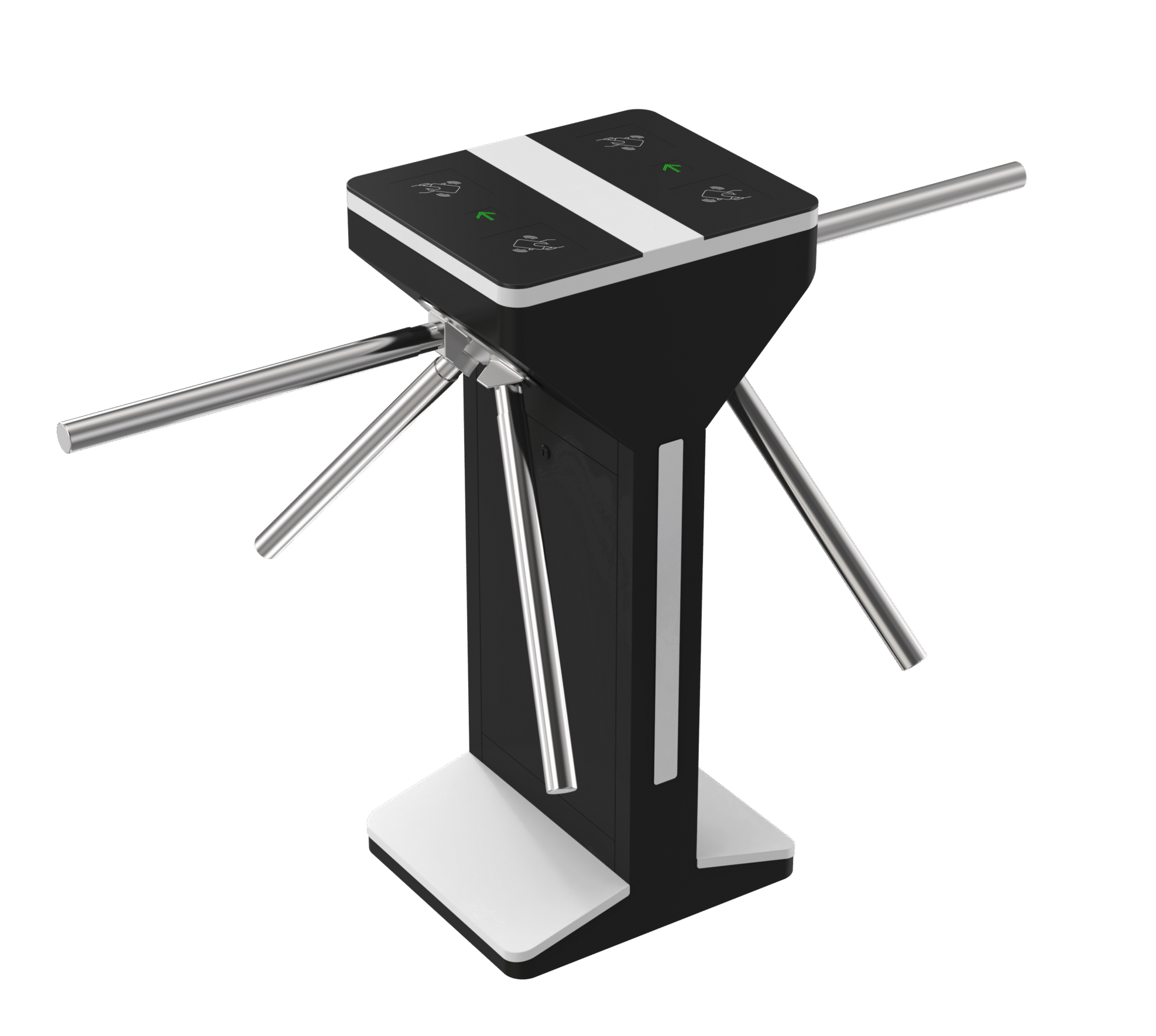

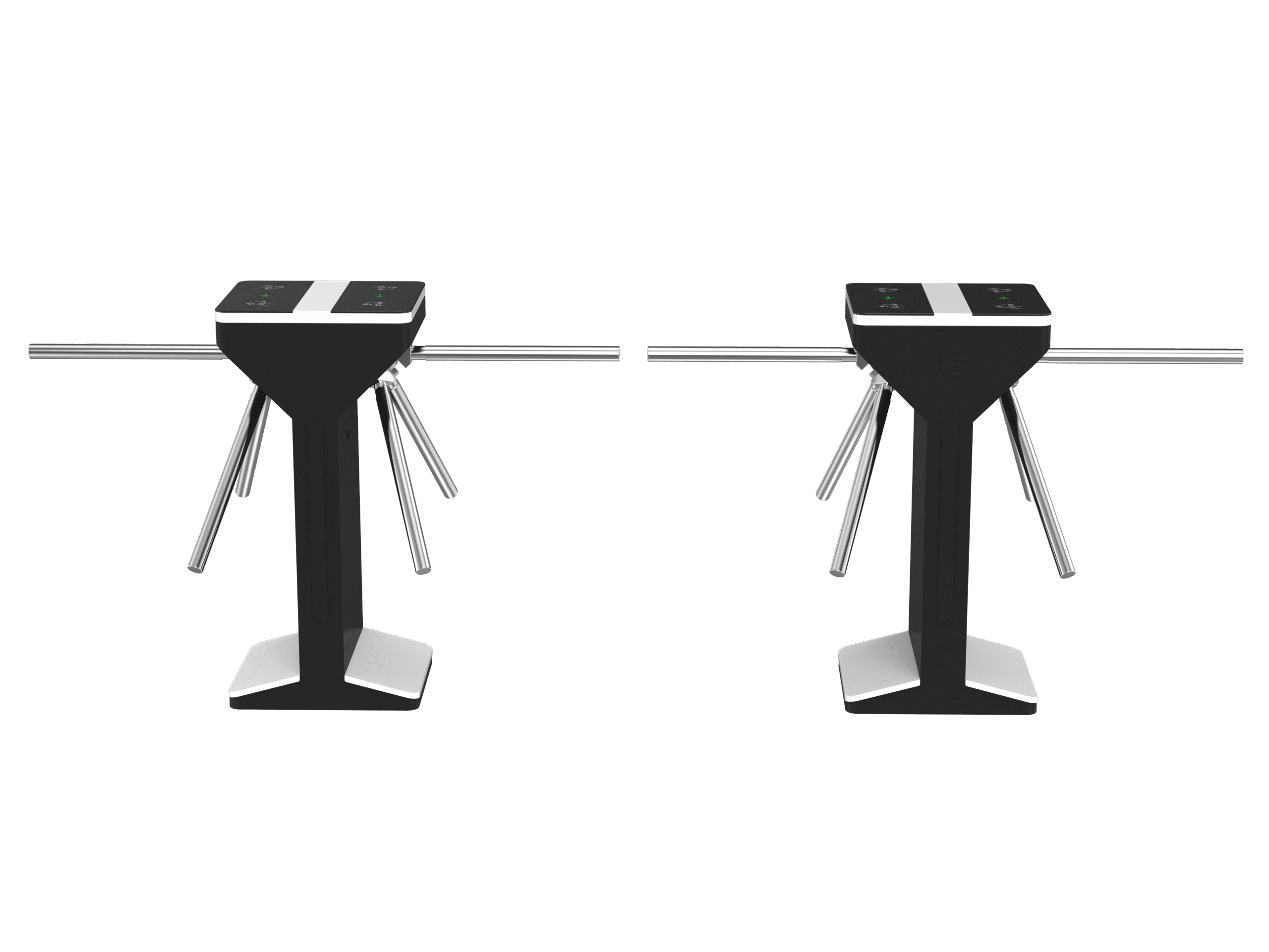

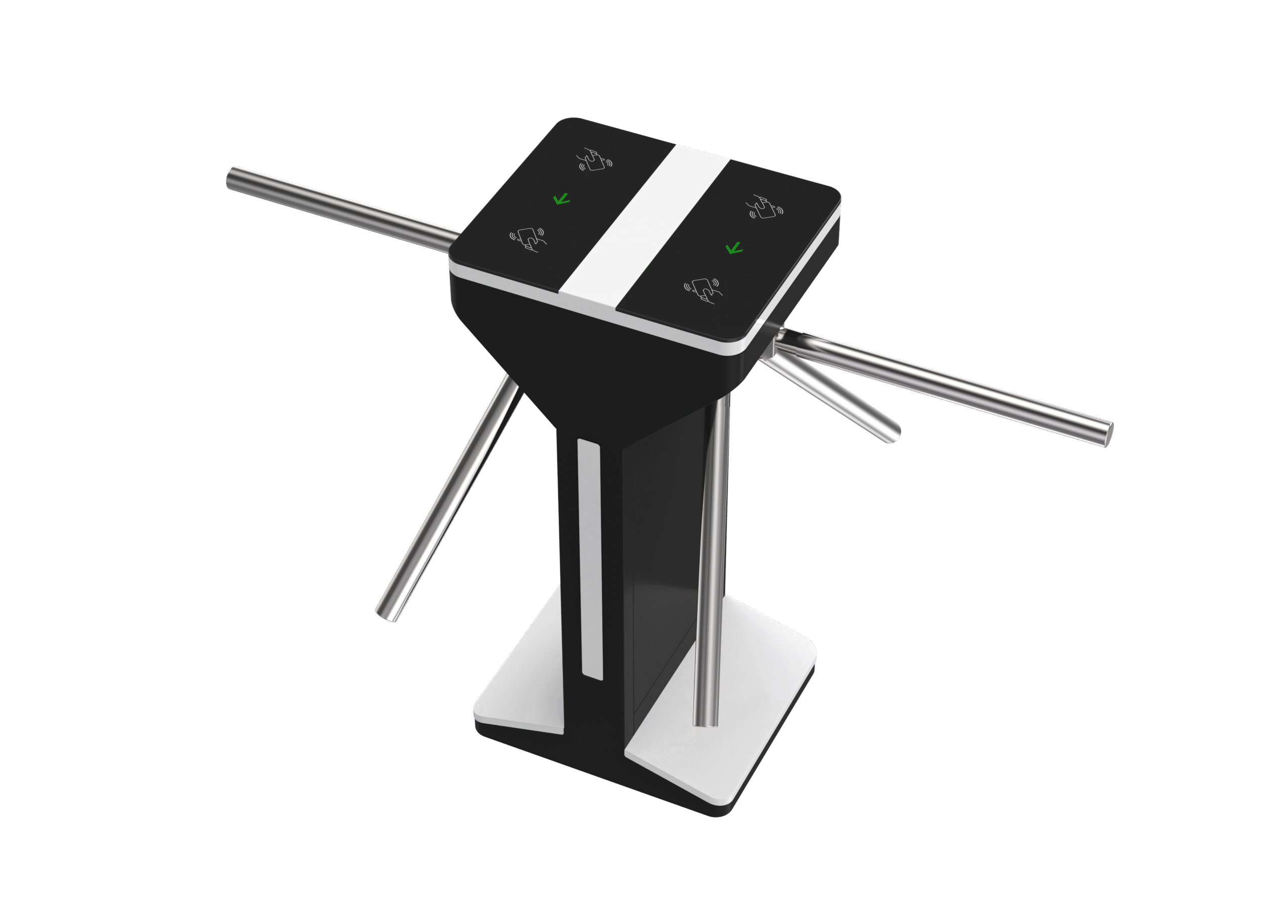

DS-Q50S on kahepoolse pöördvärava mehhanismiga — ühes korpuses on kaks 550 mm laiust läbipääsu, mis tõstab oluliselt läbilaskevõimet. Läbi pääseb korraga vaid üks inimene, tagades kõrgeima turvalisuse ja vältides mitme inimese samaaegset läbipääsu.
Klassikaline must-valge värvilahendus on elegantne ja ajatu, sobides suurepäraselt kasutamiseks esinduslikes keskkondades.
| Kaal | 60 kg |
|---|---|
| Mõõtmed | 40 × 47 × 100 cm |
