TIIBVÄRAVAD/TURNIKEED
15562.00 €

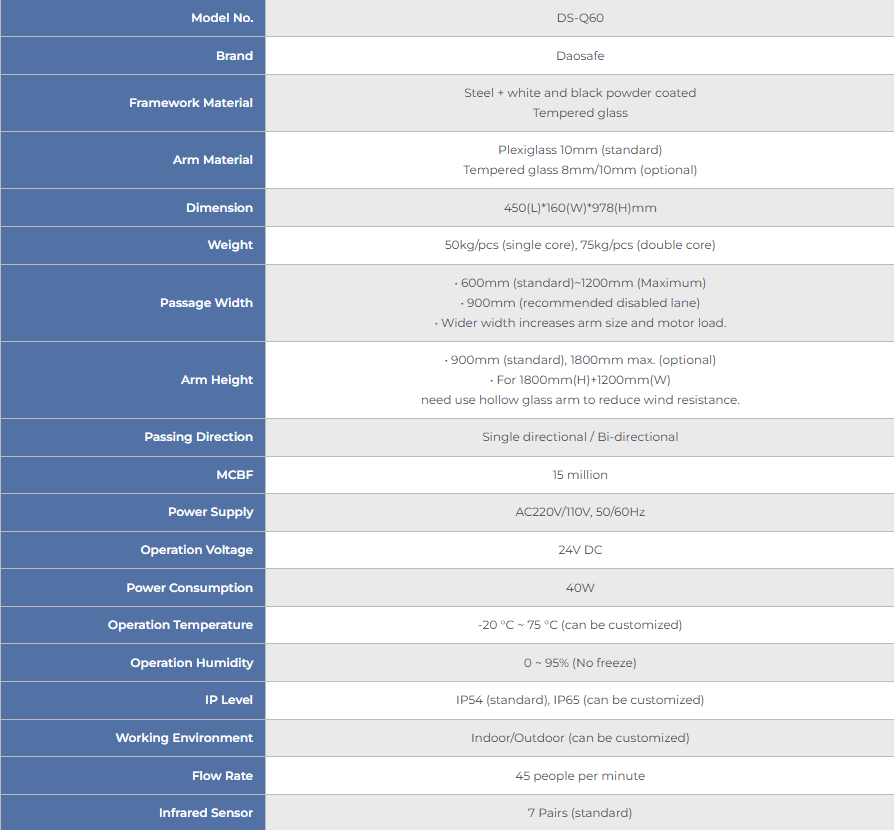

| Model No. | DS-Q60 |
| Type | Quantum Speed Gate |
| Brand | Daosafe |
| Framework Material | Steel + white and black powder coated, Tempered glass |
| Arm material | Plexiglass 10mm (standard)/ Tempered glass 8mm/10mm (optional) |
| Dimension | 450(L) * 160(W) * 978(H)mm |
| Net Weight | 50kg/pcs (single core), 75kg/pcs (double core) |
| Passage Width | • 600mm (standard)~1200mm (Maximum) • 900mm (recommended disabled lane) • Wider width increases arm size and motor load. |
| Arm Height | • 900mm (standard), 1800mm max. (optional) • For 1800mm(H)+1200mm(W), need use hollow glass arm to reduce wind resistance. |
| Passing Direction | Single directional/Bi-directional |
| MCBF | 15 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -20 °C ~ 75 °C (can be customized) |
| Operation Humidity | 0 ~ 95% (No freeze) |
| IP Level | IP54 (standard), IP65 (can be customized) |
| Working Environment | Indoor/Outdoor (can be customized) |
| Flow Rate | 45 people per minute |

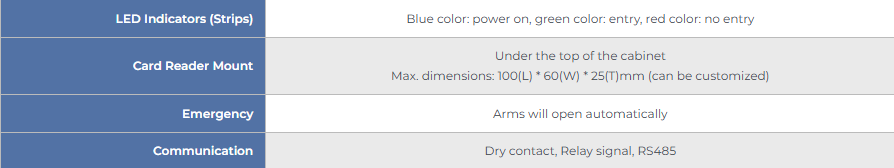

| LED Indicators (Strips) | Blue color: power on, green color: entry, red color: no entry |
| LED Indicator (Front) | Constant Indicator Light: (open lane) / (closed lane) |
| Infrared Sensor | 7 pairs (standard) |
| Card Reader Mount | Under the top of the cabinet Max. dimensions: 100(L) * 60(W) * 25(T)mm (can be customized) |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
| Flexibility | Integrate with any access control |
Laost otsas

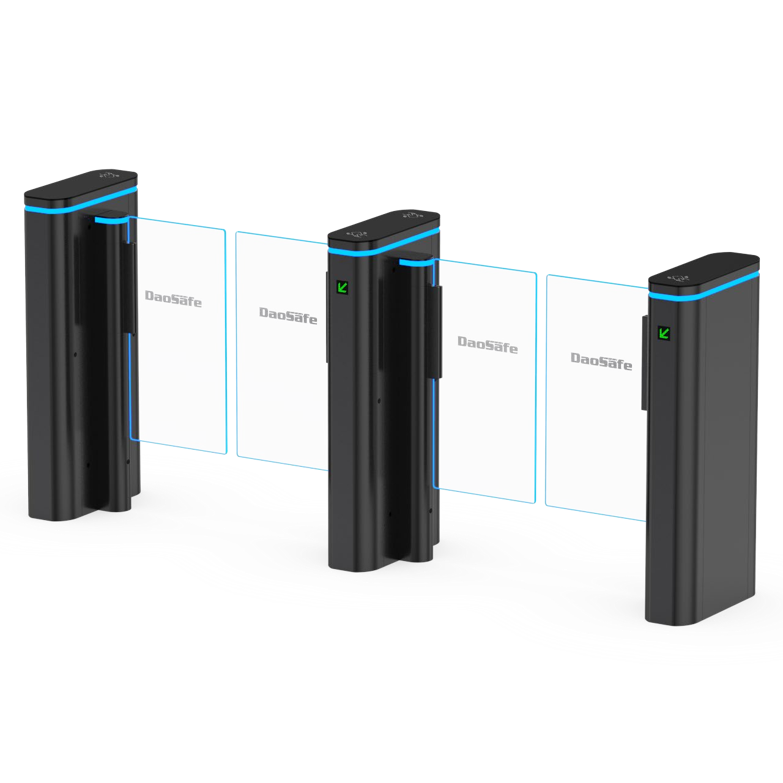

DS-Q60 Quantum kiirvärav on turu kõige kiirema avanemis- ja sulgemiskiirusega värav. Selle peamised eelised:
DS-Q60 kiirvärav on väike ja kompaktne, sobides kitsastesse ruumidesse.
Läbilaskevõime on 45 inimest minutis, mis sobib suure külastajavooluga kohtadesse.

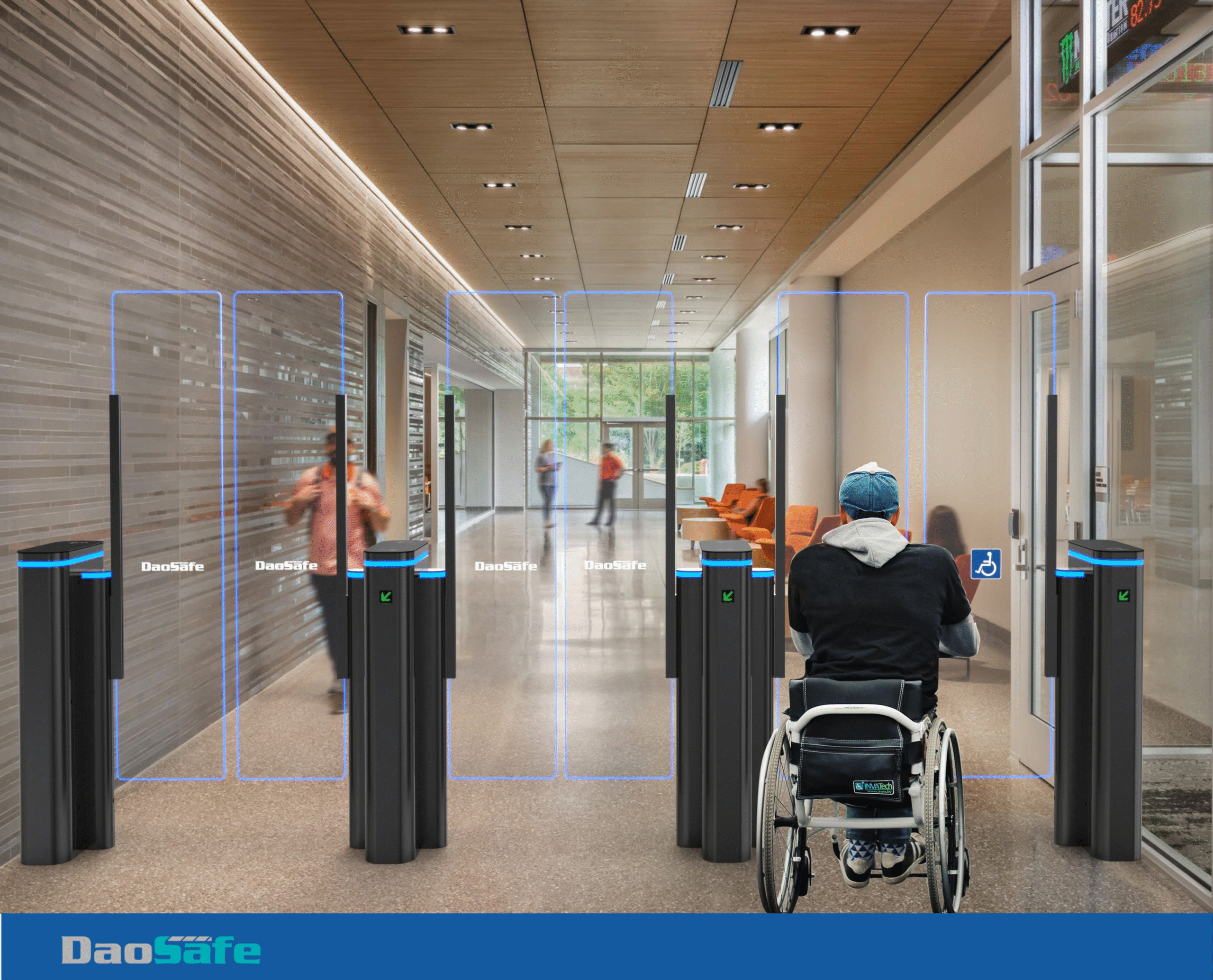

Läbimislaius 600–1200 mm; et saaksid läbida ka ratastoolid ja suure pagasiga jalakäijad.
Maksimaalne klaasi kõrgus 900–1800 mm.

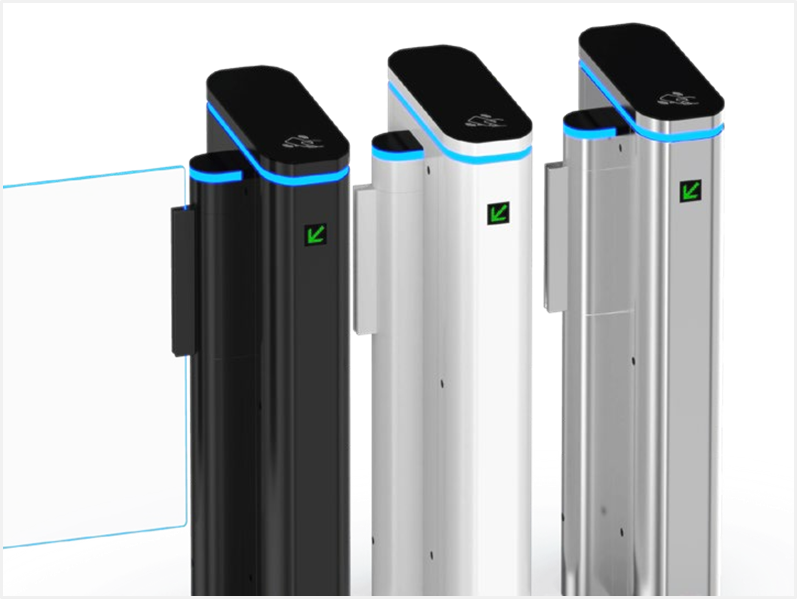

Klassikaline must disain on elegantne ja ajatult stiilne, sobides ka elegatsematesse hoonetesse. Võimalik valida ka valge värvi värava ja roostevabast terasest välimuse vahel
| Kaal | 50 kg |
|---|---|
| Mõõtmed | 45 × 16 × 98 cm |
