TIIBVÄRAVAD/TURNIKEED
10247.36 €

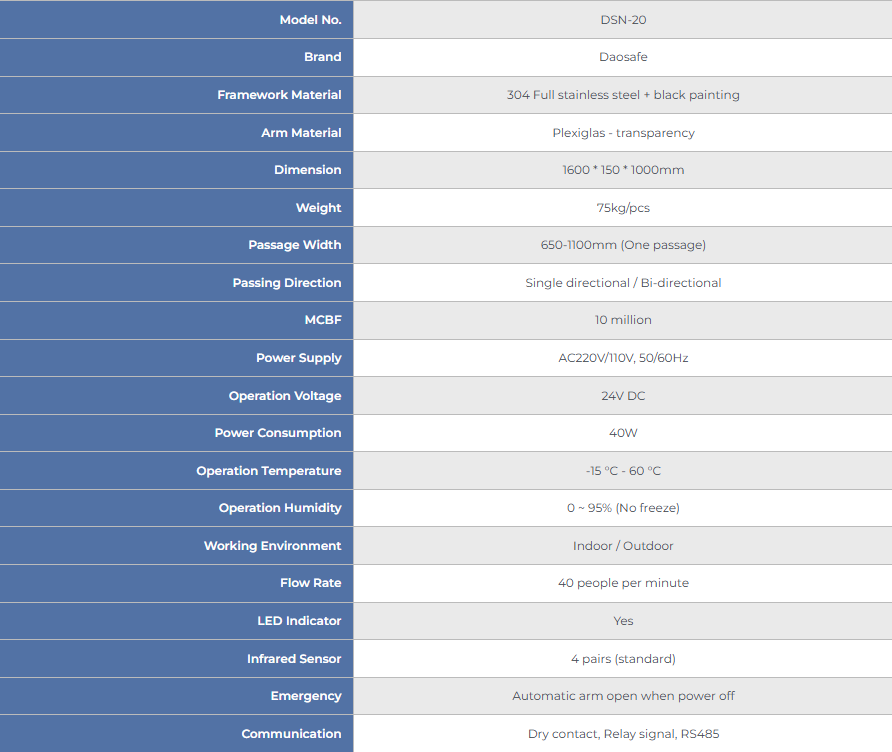

| Model No. | DSN-20 |
| Type | Nebula Optical Swing Turnstile |
| Brand | Daosafe |
| Certification | Compliance CE, ROHS |
| Communication | Dry contact, Relay signal, RS485 |
| Main Framework Material | 304 brushed stainless steel+ High end black painting |
| Side Framework Material | Tempered Glass |
| Arm Material | Plexiglas-transparency |

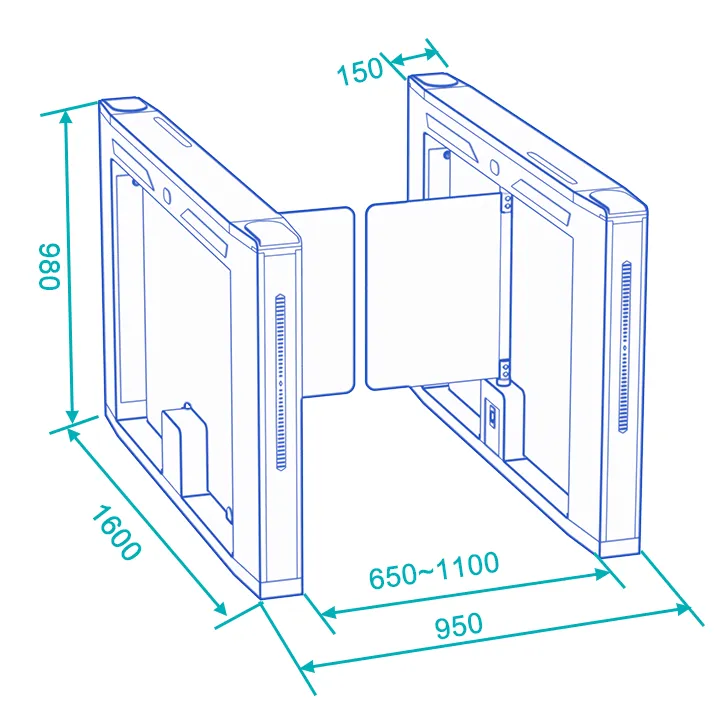

| Dimension | 1600 * 150 * 980mm |
| Net Weight | 75kg/pcs (single core), 95kg/pcs (double core) |
| Passage Width | 650mm (standard), 1100mm (handicap) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 90-100W |
| Operation Temperature | -20 °C – 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 40 people per minute |
| LED Indicator | Unique blue LED strip (front+ top+ arm) |
| Infrared Sensor | 4 pairs(standard) |
| Emergency | Automatic arm open when power off |
| Flexibility | Integrate with any access control |
Laost otsas
DSN-20 liugvärav on unikaalse disainiga — moodne ja urbanistlik korpus, kaardilugeja paneel, atraktiivne sinine LED-riba, tugev konstruktsioon, roostevaba teras ja kvaliteetne must viimistlus.
Sobib ideaalselt nii siseruumides kui ka välitingimustes kasutamiseks.
Süsteemi saab integreerida erinevate kolmandate osapoolte läbipääsukontrollisüsteemidega, näiteks RFID-, sõrmejälje- ja biomeetriliste lugejatega.
Täpsed keevitustööd: robotkeevitus tagab täpse tulemuse
| Kaal | 75 kg |
|---|---|
| Mõõtmed | 160 × 15 × 98 cm |
