KÕRGE KLAASIGA VÄRAVAD
18724.00 €
| Model No. | DS7100H |
| Type | Speed Gate |
| Brand | Daosafe |
| Framework Material | 304 Stainless Steel |
| Arm material | Glass |
| Dimension | 1500 * 120 * 1020mm |
| Net Weight | 80kg/pcs (single core), 100kg/pcs (double core) |

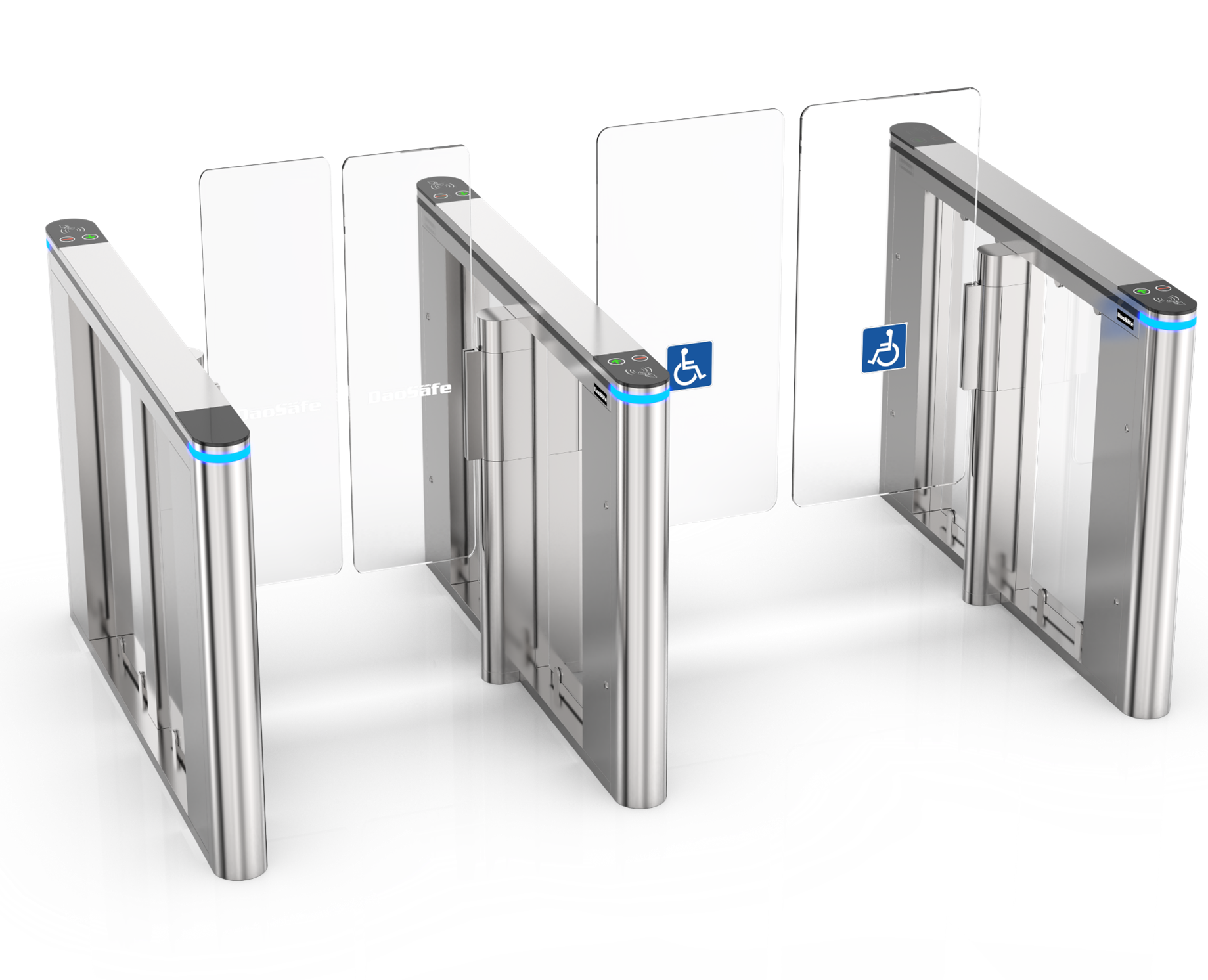

| Passage Width | 600mm (standard), 1200mm max. (handicap) |
| Arm Height | 930mm (standard), 1800mm max. (optional) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 20 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -30 °C – + 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor (shelter) |
| Flow Rate | 55 people per minute for standard arm/ 35 people per minute for high arm |
| LED Indicator | LED indicators at top: green → entry, red × no entry |
| Infrared Sensor | 6 pairs (standard) |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
| Flexibility | Integrate with any access control |
Laost otsas
DS7100 on kõige klassikalisem kiirvärav. Selle täielikult roostevabast terasest disain muudab selle ajatuks ja klassikaliseks valikuks.
Läbimislaius on 600 mm tavapääsuks ning kuni 1200 mm eripääsuks, mida saavad kasutada ratastoolid ja suure pagasiga jalakäijad.
Silmapaistev omadus: 0,1-sekundiline kiire avanemis- ja sulgemiskiirus, läbilaskevõime kuni 55 inimest minutis, mis sobib suure jalakäijatevooluga objektidele kahesuunalisel liiklusel.
| Kaal | 80 kg |
|---|---|
| Mõõtmed | 150 × 12 × 102 cm |
