TIIBVÄRAVAD/TURNIKEED
7251.52 €

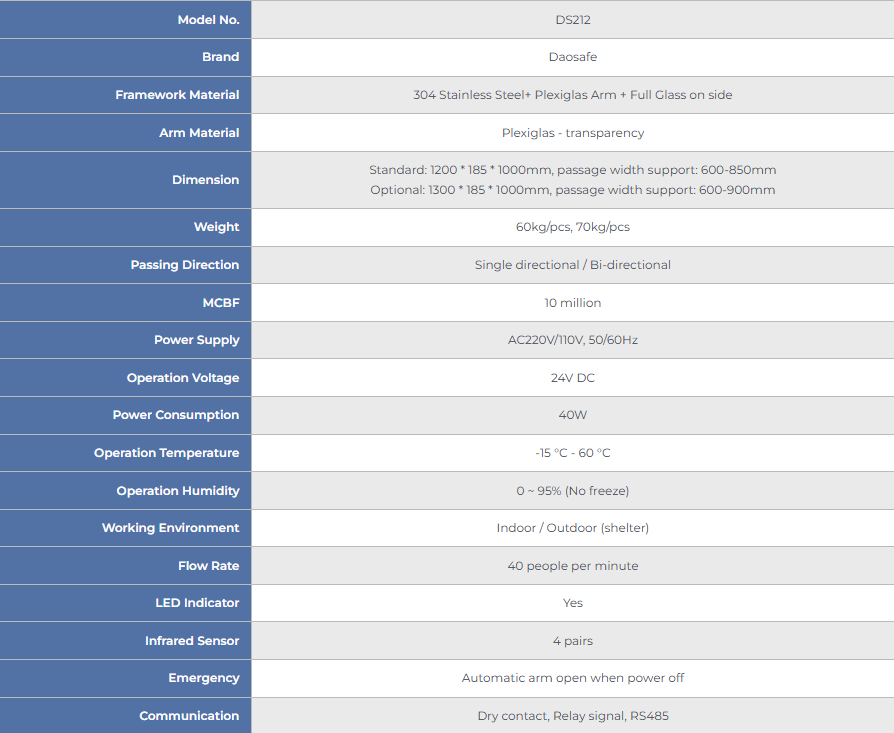

| Model No. | DS212 |
| Type | Optical Swing Turnstile Gate |
| Brand | Daosafe |
| Framework Material | 304 Stainless Steel+ Plexiglas Arm+ Full Glass on side |
| Arm material | Plexiglas-transparency |
| Dimension | Standard: 1200 * 185 * 1000mm Optional: 1300 * 185 * 1000mm |
| Net Weight | 60kg/pcs (single core), 70kg/pcs (double core) |
| Passage Width | 600-850mm (standard) 900mm (optional) |
| Passing Direction | Single directional / Bi-directional |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -20 °C – 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor (shelter) |
| MCBF | 10 million |
| Flow Rate | 40 people per minute |
| LED Indicator | Two LED indicators on top: green → entry, red × no entry |
| Infrared Sensor | 4 pairs |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
| Flexibility | Integrate with any access control |
Laost otsas

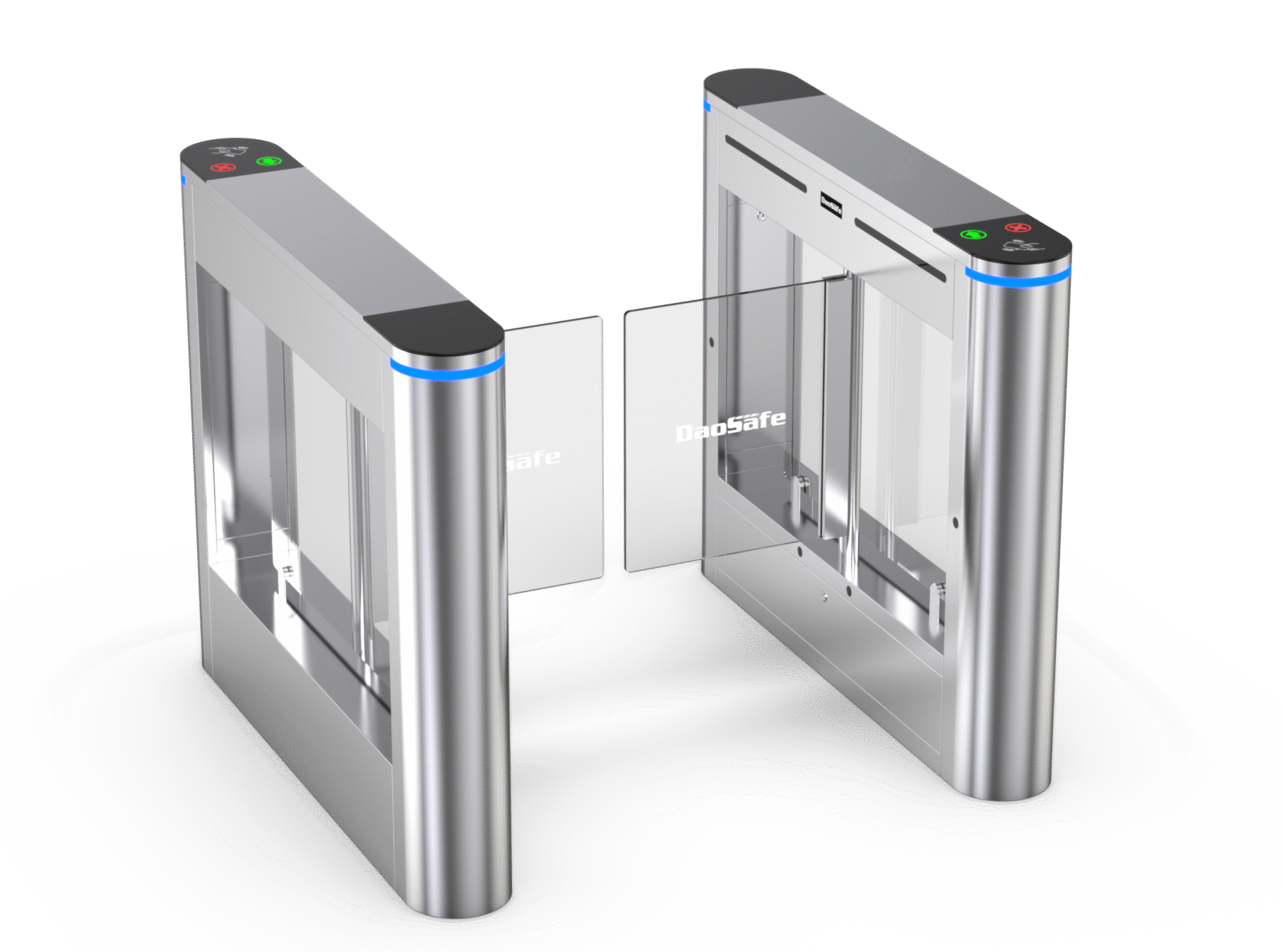

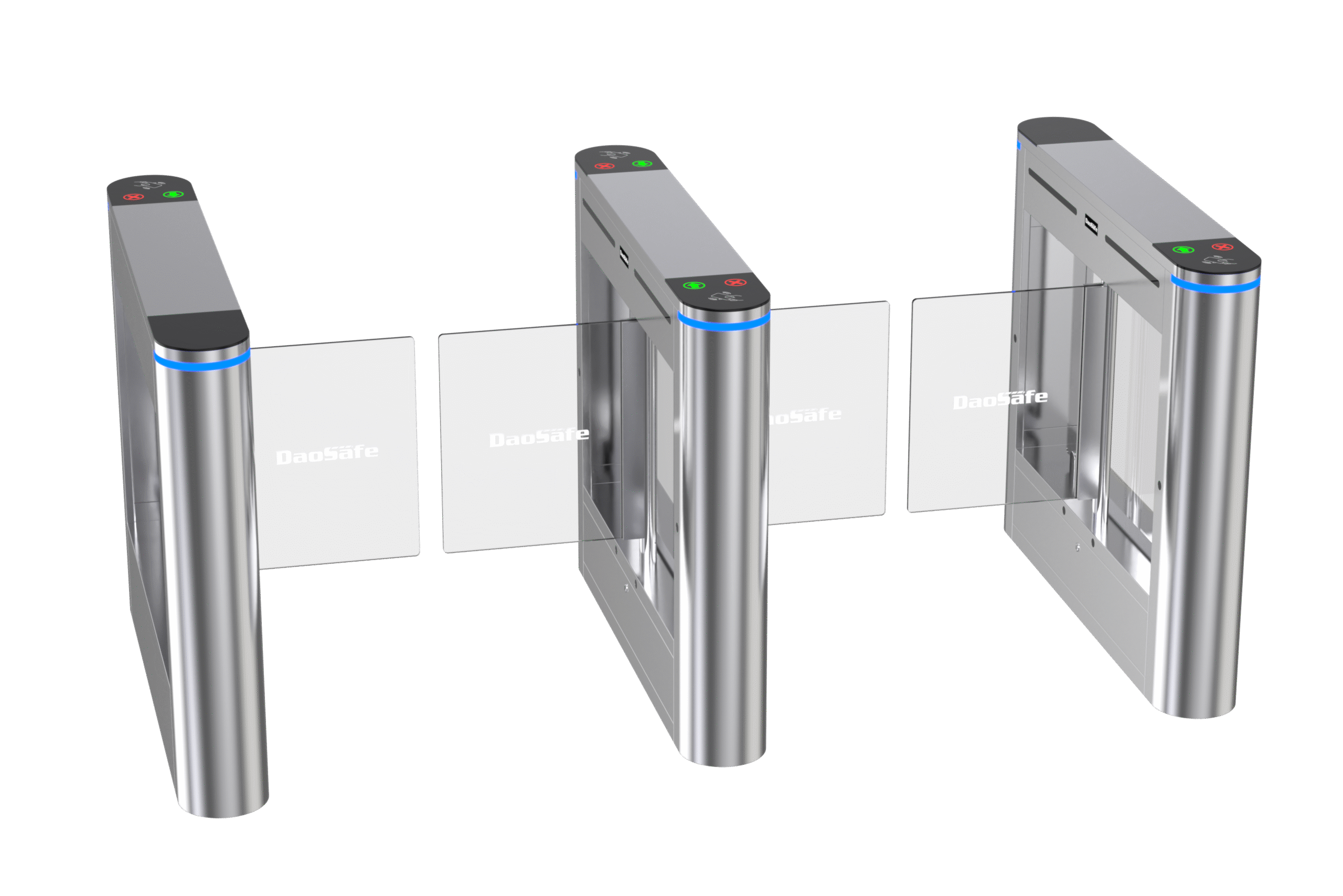

DS212 optiline tiibvärav on klassikaline ja eelistatud lahendus tänu oma roostevabast terasest välimusele ning kolmevärvilistele valgusriba-indikaatoritele.

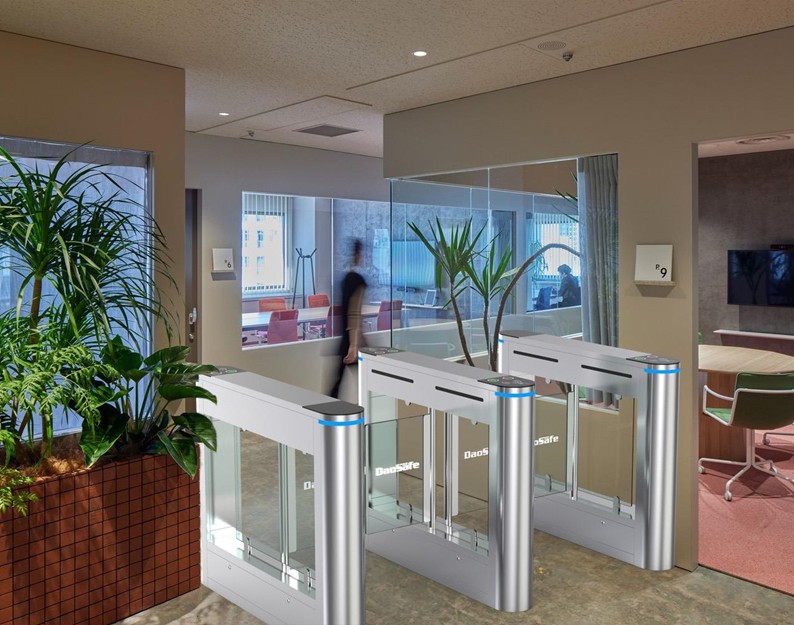

See on loodud jalakäijate sisse- ja väljapääsu kontrollimiseks piiratud aladel ning seda kasutatakse tavaliselt eksklusiivsetel objektidel kahesuunalisel liiklusel.
Värava korpus on tugev, jäik, roostevaba, veekindel ja vastupidav.
| Kaal | 60 kg |
|---|---|
| Mõõtmed | 120 × 18.5 × 100 cm |
