KÕRGE KLAASIGA VÄRAVAD
12626.92 €
| Model No. | DS-Q70H |
| Type | Quantum High Glass |
| Brand | Daosafe |
| Framework Material | Steel, White and black stoving varnish, Tempered glass |
| Arm material | Plexiglas-transparency |
| Dimension | 1400*120*978mm |
| Net Weight | 75kg/pcs (single core), 95kg/pcs (double core) |
| Passage Width | 600mm (standard), 1100mm (handicap) |
| Arm Height | 900mm (standard), 1800mm max. (optional) |
| Passing Direction | Single directional/Bi-directional |
| MCBF | 15 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -20 °C – 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor/Outdoor (shelter) |
| Flow Rate | 35 people per minute |
| LED Indicator | Two LED indicators on top: green → entry, red × no entry |
| Infrared Sensor | 7 pairs (standard) |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
| Flexibility | Integrate with any access control |
Laost otsas

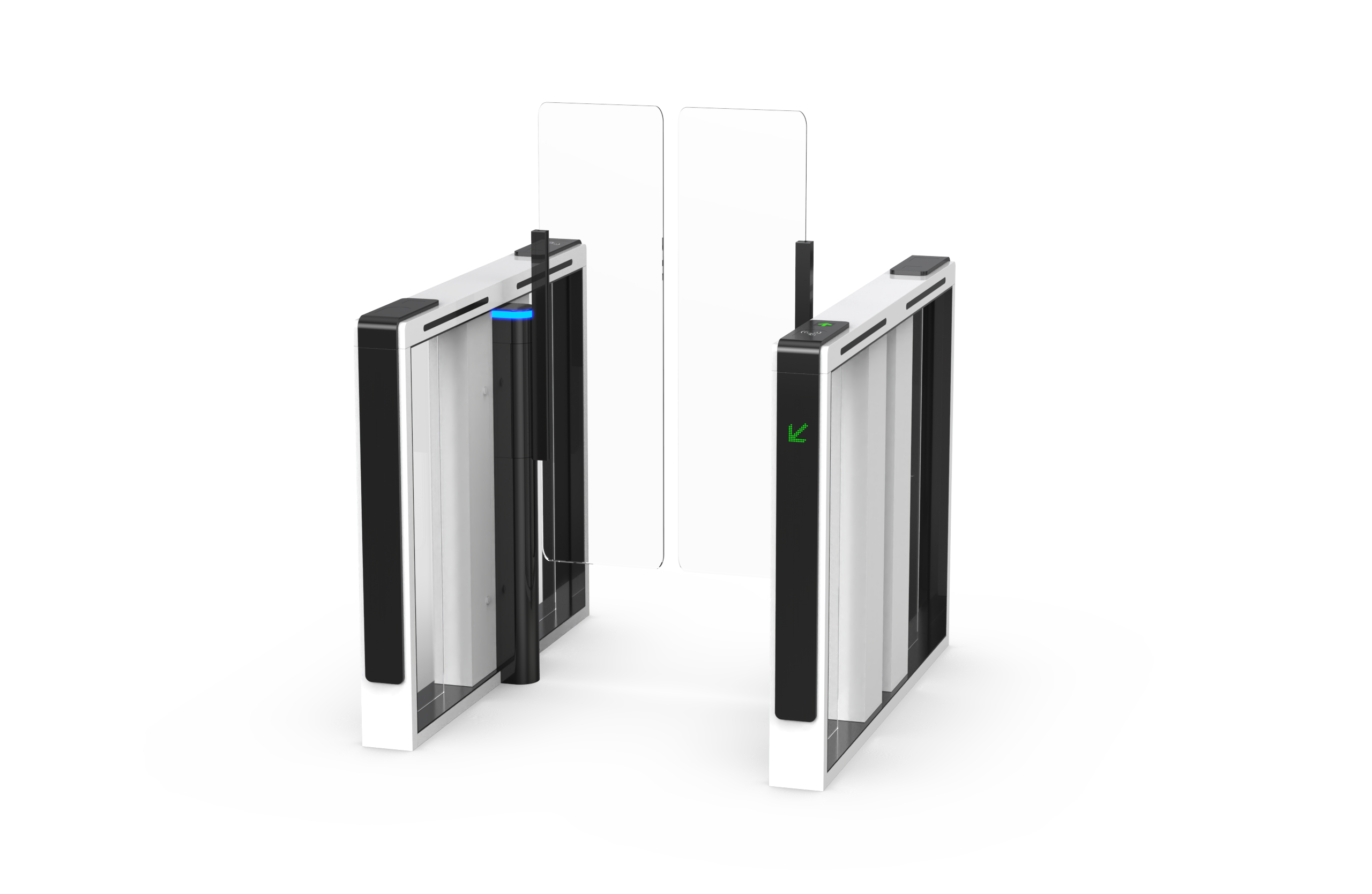

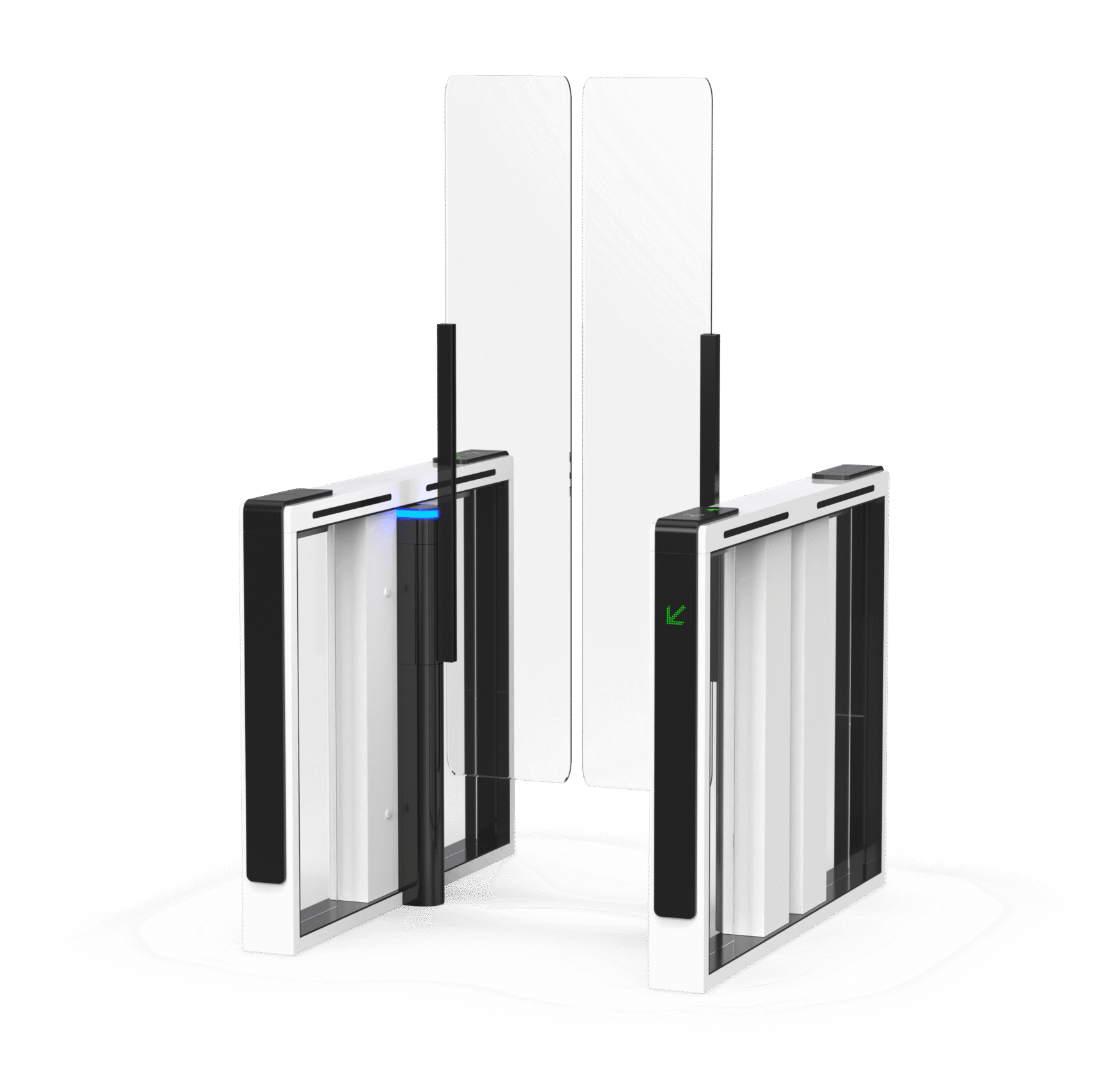

DS-Q70H on kõrge klaasiga kiirvärava mudel, mille klaasi maksimaalne kõrgus on 1800 mm, sobides suure turvanõudega kohtadesse. Samuti toetab see 600–1100 mm laiust läbipääsu, võimaldades läbida ka ratastoolidel ning suurte pagasitega jalakäijatel.
Disain on klassikalises musta ja valge värvikombinatsioonis, elegantne ja ajatu, sobides suurepäraselt ka elegantsetesse ruumidesse.
| Kaal | 75 kg |
|---|---|
| Mõõtmed | 140 × 12 × 97.8 cm |
